Recently, 3PEAK introduced the TPT1169xQ series of Automotive-Grade System Basis Chips (SBCs). This product integrates a Watchdog, dual LDOs, and a CAN SIC (Signal Improvement Capability) transceiver. It features ultra-low power consumption, enhanced EMC performance, and multiple diagnostic protection functions. It fully complies with the ISO 11898-2:2024 standard, supports high-speed communication up to 8Mbps, and has achieved mass production via a 100% domestic supply chain. It has currently received certification from multiple OEMs and Tier-1 suppliers.
- Core Technical Highlights
- CAN SIC Ringing Suppression & High-Speed Communication
- Compliant with ISO 11898-2:2024 and SAE J2284-1~5 standards, supports CAN FD SIC mode with data transmission rates up to 8Mbps.
- Utilizes self-developed patented ringing suppression technology, significantly improving signal reflection issues in complex topologies (e.g., star networks) and reducing bit error rate.
- Passed interoperability tests by the German C&S Laboratory, ensuring seamless communication with mainstream CAN devices in the industry.

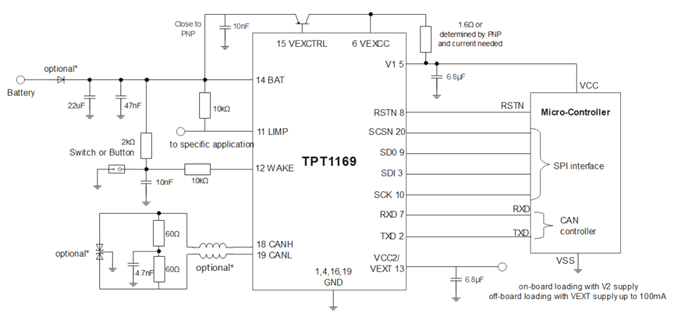

- Highly Integrated Power Management & Diagnostics
- Dual LDOs:
- LDO V1: Outputs 5V/3.3V, max current 250mA, accuracy ±2%, supports external PNP current expansion, supplies power to MCU.
- LDO V2/VEXT: Outputs 5V, max current 150mA, features battery/ground short-circuit protection.
- Flexible SPI Interface: Supports 16/24/32-bit configuration for mode control and diagnostics.
- Watchdog: Supports Window mode (8ms~4096ms), Timeout mode, and Autonomous mode.
- Protection Mechanisms: LDO overvoltage/undervoltage protection, short-circuit protection, overtemperature shutdown; dedicated LIMP pin indicates system faults.
- Dual LDOs:
- Automotive-Grade Reliability & Functional Safety
- Compliant with AEC-Q100 Grade 1 standard; bus pin ESD protection reaches ±8kV (IEC61000-4-2 contact discharge).
- Supports Partial Networking wake-up and wake-up source identification, optimizing power management.
- Provides functional safety documentation (Safety Manual, FMEDA, FIT rate), assisting systems in achieving ISO 26262 ASIL-B certification.
- EMC & Electrical Characteristics
- EMC Performance: At 2Mbps communication, passes system-level BCI test of 106dBμA (200mA) without common-mode choke.
- Bus Protection: Tolerates fault voltages of ±45V; DFN3.5X5.5-20L package supports AOI (Automated Optical Inspection).
- Application Scenarios
Suitable for body electronics, automotive lighting, HVAC systems, Advanced Driver-Assistance Systems (ADAS), and other fields, providing a highly integrated solution for multi-node in-vehicle networks.
Source: 3PEAK Official WeChat
III. Significance for Domestic Supply Chain

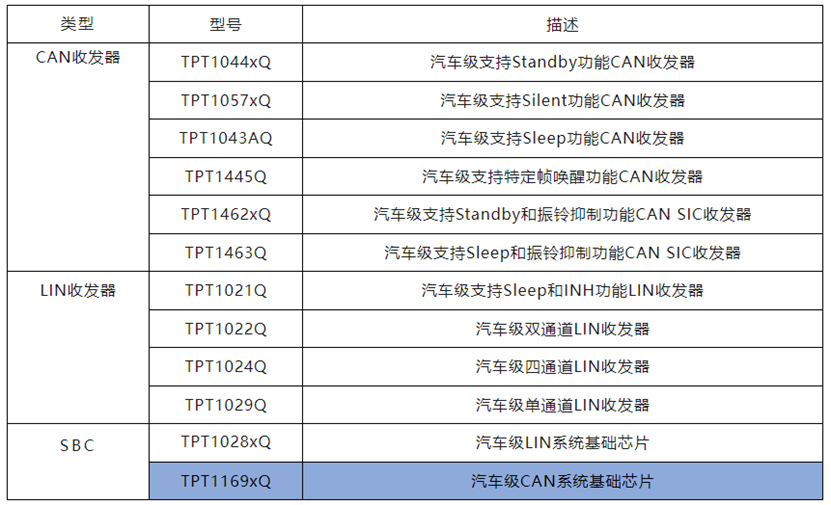

As the first CAN SIC SBC with a fully domestic supply chain, the TPT1169xQ series complements 3PEAK’s complete automotive interface product matrix (including the TPT1044xQ CAN transceiver, TPT1021Q LIN transceiver, etc.), strengthening the autonomy and controllability of the automotive electronics supply chain.
Source: 3PEAK Official WeChat
3PEAK is now providing TPT1169xQ samples and evaluation boards.
